Raspberry Pi touchscreen CNC controller
My fork of the Carvera Community Controller, with a touchscreen redesign and a dedicated Linux kiosk image that made my Raspberry Pi 4 feel fast again.
- Repository
- Carvera_Controller
- Default branch
- main
- README source
- README.md
- Portfolio snapshot
Portfolio notes
Why I made it
My Carvera Air's controller software and firmware are open source, and there is an amazing community fork that adds a lot of features and is well maintained. That community's work is the foundation for this project. My particular setup, though, was a Raspberry Pi 4 running vanilla Android, and it felt slow.
The community controller has to support a much wider range of hardware, platforms, and configurations than my setup. Changes there need to work for that broader community, and I realized that gradually adding my changes upstream wasn't the right fit for my goals here. I wanted to build specifically around my Pi, my touchscreen, and the way I use the machine. A personal fork gave me room to do that, with the responsibility of merging community improvements back in. With AI helping, that felt manageable.
I connected to the Pi's Android installation over ADB and let AI work on both the app and the Android settings. Alongside that, I spent a lot of time polishing the interface and adapting layouts and interactions to my touchscreen. Number entry, keyboards, jogging, file browsing: the things you actually touch while using the machine.
Eventually I had it looking and feeling how I wanted, but Android on the Pi was still laggy.
Fuck it, I have AI. And there's already a Linux build target.
So I built a new target: a dedicated Raspberry Pi kiosk image. It uses Raspberry Pi OS Lite, based on Debian 13, with labwc, a lightweight Wayland compositor. The Pi boots directly into the controller, without a full desktop or browser. The setup is built around the Pi 4, its graphics acceleration, and my touchscreen. It also lets my laptop connect remotely for screenshots, screen control, debugging, and updates, so I can keep working on it beside the machine.
And boy does this baby fly. The same Pi feels much faster, and the controller is far nicer to look at and use.
That's the part of this project that excites me most. I already had good community software. With AI, I could take it all the way to something that fits my particular machine and the way I want to use it. "I can make this mine" feels like a much smaller commitment than it used to.
The README below covers the hardware, touch improvements, kiosk setup, and development tools.
Synced source
Inside the Carvera Controller fork
The project README is presented here as part of the portfolio, with links and source images kept intact.Carvera Controller: Pat’s Raspi 4 Kiosk Fork
A Community Carvera Controller fork for running a Raspberry Pi 4 touchscreen kiosk beside a Carvera or Carvera Air. It boots directly into the controller and includes an on-screen keyboard, numeric entry pads, and laptop maintenance tools.
Built around Pat’s 1920 × 1200 touchscreen, with a redesigned interface and improvements to touch controls. Desktop and Android builds are also available from source.
I use and test this fork on my Carvera Air. Your mileage may vary on other machines.
Set up a kiosk · Hardware · Firmware · Features · Other platforms · Development
Raspberry Pi kiosk
- Boots into the controller on 64-bit Debian Linux.
- Provides touch jogging, numeric pads, a text keyboard, and adjustable interface size.
- Supports laptop diagnostics, logs, backups, and optional screen sharing over SSH.
- Preserves preferences during app updates and restores the previous release if startup fails.
Hardware
| Part | Target setup |
|---|---|
| Computer | Raspberry Pi 4 |
| Display and enclosure | XBONFIRE 10.1-inch HDMI touchscreen/enclosure |
| Resolution | 1920 × 1200 (16:10), approximately 60 Hz |
| Storage | SD card, 8 GB or larger |
The kiosk targets this display resolution. Its display tools accept 1920 × 1200 and a 1920 × 1080 comparison mode, both near 60 Hz. The screen must advertise the selected mode. Other resolutions need changes to the display setup and may need layout adjustments.
For another resolution, open an issue with your display model and resolution. Support can be added on request; further work will follow demand.
Firmware
Built for use with Carvera Community Firmware 2.2.0c, the version used on Pat’s Carvera Air (CA1).
This fork does not require its own machine firmware. Installing the kiosk does not by itself require reflashing the mill. The recorded device tests cover the Android controller on 2.2.0c.
Features depend on the firmware reported by the machine. Higher USB baud rates require community firmware 2.1.0 or newer. Live vacuum-power controls require firmware that reports external-output state and power.
Install the kiosk
The kiosk is included on this fork’s main branch.
Before you start
On your computer, install Raspberry Pi Imager, Python 3.11+, and the OpenSSH client tools (ssh, scp, and ssh-keygen).
You also need an SSH key pair for laptop access. If you do not already have one, run the following and accept the default file location:
ssh-keygen -t ed25519
The card setup below uses the public key at ~/.ssh/id_ed25519.pub. Keep the private key on your computer.
1. Download the image and setup tools
Download Pi Kiosk v1.0.0, the first prebuilt Raspberry Pi 4 kiosk release.
Download these files from its Assets section:
| File | Purpose |
|---|---|
carvera-kiosk-pi4-1.0.0.img.xz | SD card image for the Raspberry Pi 4 |
carvera-kiosk-laptop-1.0.0.zip | Card setup and laptop maintenance tools |
carvera-kiosk-app-1.0.0.tar.gz | App update for an existing kiosk |
SHA256SUMS | Checksums for verifying the downloads |
Compare the downloads with SHA256SUMS before using them. On Linux, run sha256sum -c SHA256SUMS beside all three downloads. On Windows, use Get-FileHash <filename> -Algorithm SHA256 for each file and compare its hash.
Extract the laptop ZIP and open a terminal in its laptop folder, beside kiosk.py. Keep kiosk.py, laptop-requirements.txt, README.md, and the complete novnc folder together. Run the helper commands below from that folder. Git and Docker are only needed if you build the image yourself.
2. Flash and configure the card
In Raspberry Pi Imager, choose a custom image and select the downloaded .img.xz. Flash a spare card and keep your existing card for rollback. Skip Imager’s OS customization.
Before ejecting the card, configure its bootfs partition. Replace E:/ with its actual drive or mount path, and change the public-key path, Wi-Fi name, and country to match your setup:
python kiosk.py prepare-card --boot-dir E:/ --public-key ~/.ssh/id_ed25519.pub --hostname carvera-pi --ssid Workshop --country US
The helper prompts for your Wi-Fi password. For Ethernet, omit --ssid and --country. To import preferences from an exported Android app backup, add --settings backup.tar.gz.
3. Boot the Pi
Insert the card and power on the Pi. In Settings → System, find its network address and SSH fingerprint. From your computer, connect once:
ssh carvera-admin@carvera-pi.local
Compare the fingerprint with the touchscreen before accepting it. If the hostname does not resolve, use the IP address shown on the Pi. Once connected, type exit to return to your computer’s terminal.
4. Connect the mill
The controller starts disconnected. Tap Connect and select USB or a network connection. Opening a USB connection resets the mill. USB is the default for a fresh installation.
Laptop maintenance
From the extracted laptop folder, use the same hostname or IP address you used for SSH:
python kiosk.py diagnose --host carvera-admin@carvera-pi.local
python kiosk.py logs --host carvera-admin@carvera-pi.local
python kiosk.py backup --host carvera-admin@carvera-pi.local preferences.tar.gz
The backup command saves preferences to your computer.
See the kiosk guide for screen-sharing setup, Wi-Fi recovery, app deployment, and rollback. Updates require maintenance mode and an idle machine. Full OS updates use a replacement card image.
Controller improvements
Interface and touch controls

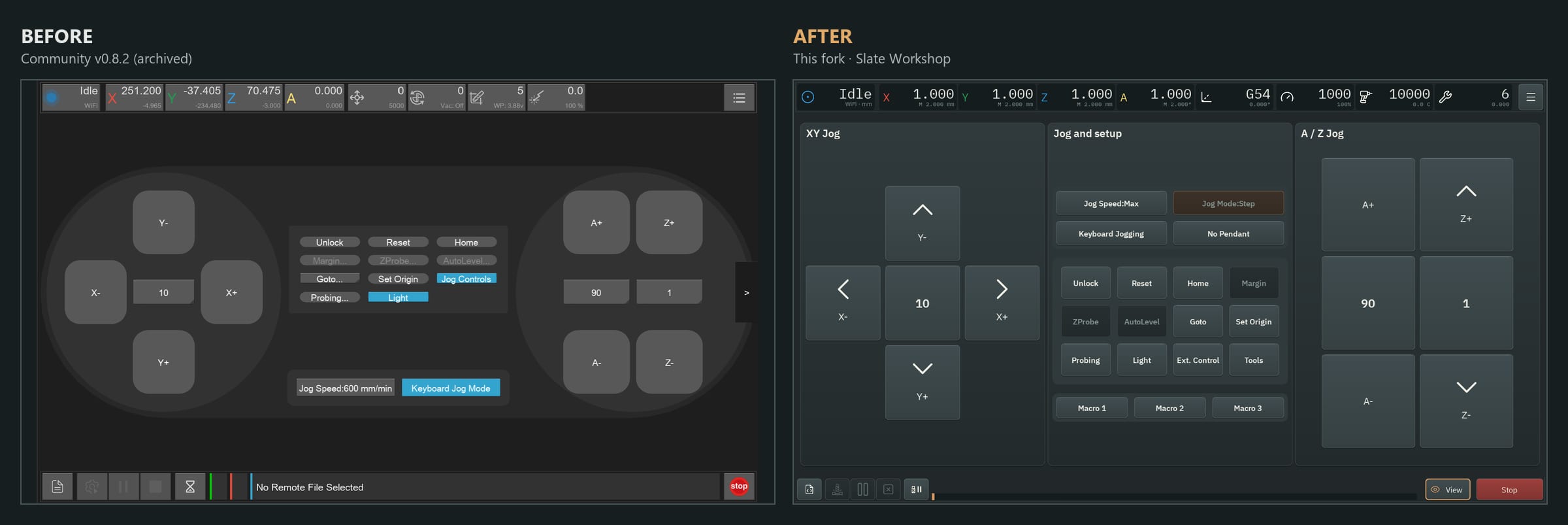

The Slate Workshop theme adds dark panels, consistent controls, new icons, and redrawn probing illustrations. Touch layouts cover job setup, probing, facing, CMM, settings, and file browsing.

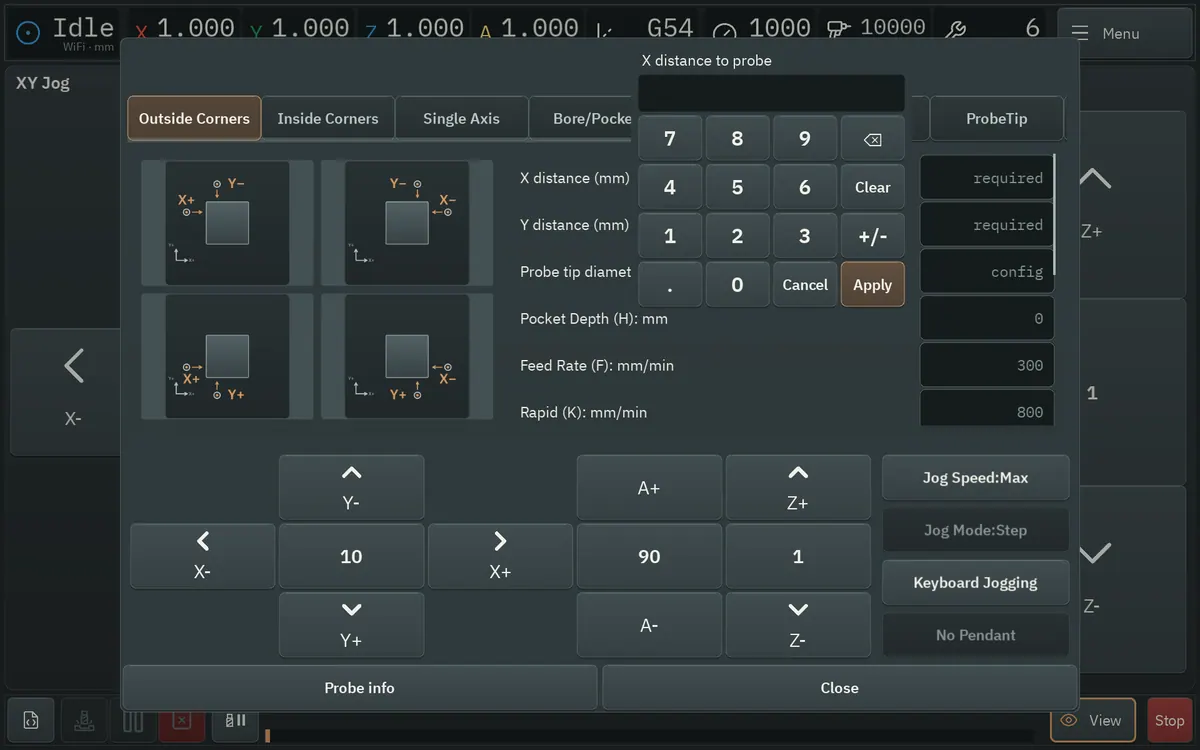

- Enter signed decimal values with the number pad.
- Keep fields and confirmation buttons above the keyboard.
- Jog with one controlling finger. Sliding off stops movement; sliding back does not restart it.
- Viewer gestures, scrolling, and playback scrubbing stay with the finger that started them.
- Find file actions directly in the browser and adjust the interface size to suit the display.

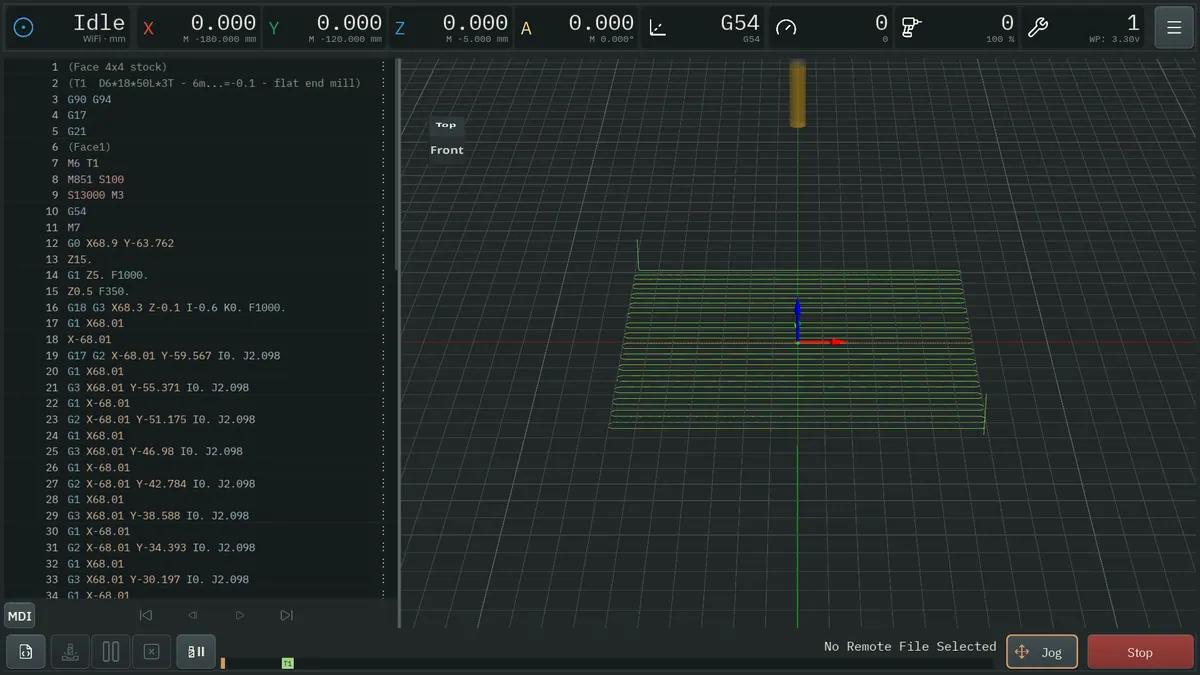

More screenshots: compact jog screen, touchscreen preview, probing, and facing wizard.
Connections and responsiveness
Android has native USB serial support, including the FTDI adapter in Pat’s Carvera Air setup, and can reconnect using a saved adapter identity.
Network connection setup and G-code preparation run in the background. Optional dialogs load when first opened to reduce startup work. Large previews can still cause pauses.
Vacuum controls
The spindle dropdown provides 50–100% live vacuum-power adjustment when compatible firmware reports that the external output is on. The control is disabled when status is missing or stale.
Carvera Air settings also expose the default vacuum power for Auto Ext. Out. Reset the machine after applying that default.
Community features
The fork retains advanced 3D probing, WHB04-family pendant support, keyboard jogging, work coordinate management, configurable autolevel areas, job setup backgrounds, custom tool numbers, facing, CMM tools, and a rotary-aware G-code preview.
Availability depends on the machine, firmware, and accessories. Advanced 3D probing needs a suitable touch probe. Tool-changing features need ATC hardware; a factory Carvera Air does not have an ATC.
Desktop and Android
Run from source on Windows, Linux, or macOS
Install Python 3.9–3.13, Git, and Poetry. Python 3.12 matches CI. On Debian/Ubuntu, install these dependencies first:
sudo apt-get install python3-dev build-essential libhidapi-hidraw0 mtdev-tools
On Windows, the pyquicklz dependency may need Visual C++ build tools to compile.
git clone https://github.com/prdoring/Carvera_Controller.git
cd Carvera_Controller
poetry install --without ios-dev
poetry run python -m carveracontroller
Build for Android
From the checkout, in a prepared Linux build environment:
poetry install --without ios-dev
poetry run python scripts/build.py --os android --version 2.2.0-DEV
Install the resulting dist/carveracontroller-community-2.2.0-DEV.apk on the device. USB connections need USB host support, a data cable or adapter, and device permission.
The Windows and Android guide covers build prerequisites, installation, and signing. Back up preferences before replacing an existing app; a different signing key can prevent an in-place update.
Build a kiosk image
To build from source, see Raspberry Pi kiosk image. This requires Git and Docker Desktop with Linux containers.
Development and support
Development and packaging covers checks, translations, and packaging. Use this fork’s issue tracker for bugs or requests. For bugs, include your platform, controller revision, machine model, firmware version, and steps to reproduce.
The community documentation covers shared features. CONTRIBUTING.md is the community contribution guide.
Thanks to Makera and the Carvera Community contributors. See LICENSE, NOTICE, and Privacy.
