Pat Engine

Hi, I'm Pat. I like to make fun little games for my own enjoyment and to share with my friends. After a few of these I started building tooling I could reuse for new ones, and polished those tools into this engine. It will keep evolving as I make more stuff.

A no-build 2D engine for the browser. Art is vector JSON drawn on Canvas2D, sound is Web-Audio synthesis, music is JSON note patterns: a game's creative content is a folder of data files, not a folder of binaries. Every format has a built-in browser editor, and because it's all documented JSON, the engine is agent-forward: an AI coding agent can author assets and gameplay the same way you do (AGENTS.md ships in the repo for exactly that).

Getting started

The engine isn't an npm dependency. There's no package to depend on and no version to track: it's a small, readable runtime you copy into your project, and from then on it's yours to edit.

You need three things installed, all of which you likely have:

Node.js 20.11 or newer (npm comes with it).
git, to clone the repo.
Any current browser. No build tools, no global installs.

Pull the repo and explore the example game first:

git clone https://github.com/prdoring/Pat_Engine.git
cd Pat_Engine
npm install          # installs the engine's one dependency (ws)
npm start

Or skip the manual steps and paste this into your coding agent (Claude Code, Cursor, Codex, whatever you use):

Clone https://github.com/prdoring/Pat_Engine.git, run npm install (needs Node 20.11+),
then npm start, and verify http://localhost:6970/ and http://localhost:6970/editor both
load with no console errors. Then read AGENTS.md at the repo root: it is the guide for
building games and assets on this engine.

Game: http://localhost:6970/. Click the ground to spawn critters, click a critter to pet it, space to scare, x to despawn, WASD/arrows to pan, scroll to zoom.
Editor suite: http://localhost:6970/editor. See the Editor Guide.
Shot harness: http://localhost:6970/shots. Renders predefined game states to images (see Built for agents).

npm test        # unit + parity tests (Node --test, no dev-dependencies)
npm run smoke   # boots every page in a headless system Chrome/Edge; fails on console errors

The smoke test uses whatever Chrome or Edge is already on your machine (set BROWSER=/path/to/chrome to point it somewhere specific) and skips itself if it can't find one. Nothing extra to install.

When you're ready to build your own game, the scaffold script copies the engine baseline (with the example game as a starting point) into a fresh folder, renames the package, and inits git:

./new-game.sh MyGame              # creates ../MyGame next to the engine
./new-game.sh /path/to/MyGame     # or an explicit path
# flags: --no-install  --no-git  --force

.\new-game.ps1 MyGame             # creates ..\MyGame next to the engine
.\new-game.ps1 C:\Games\MyGame    # or an explicit path
# flags: -NoInstall  -NoGit  -Force

Then make it yours:

Replace data/*.json with your own content (or author it in /editor).
Point data/editor-manifest.json at your art collections + preview entities.
Replace game/ with your scenes and entities, wiring engine services in game/main.js.

See AGENTS.md §8 for the full new-game recipe.

Vectors and synthesis, not asset folders

Pat_Engine avoids binary assets wherever it can. Art is JSON interpreted on a Canvas2D, drawn live at any resolution and zoom; VFX are data, not sprite sheets; sound is synthesized (sample files are supported but optional); music is JSON note patterns played by synth instruments. A game's entire creative content ends up as a few human-readable JSON files, so assets show up in pull requests as reviewable diffs, and anything that can edit JSON can author them.

Built for agents

Things in the repo that assume an agent may be doing some of the work:

AGENTS.md: the complete guide to the layering rules, the sequence-first orchestration pattern, signal callbacks, and every authoring schema. Scaffolded projects carry it along.
Data-first formats: art, VFX, sound, music, and sequences are all documented JSON, so an agent can author or tune any asset by editing data. No image or audio tooling required.

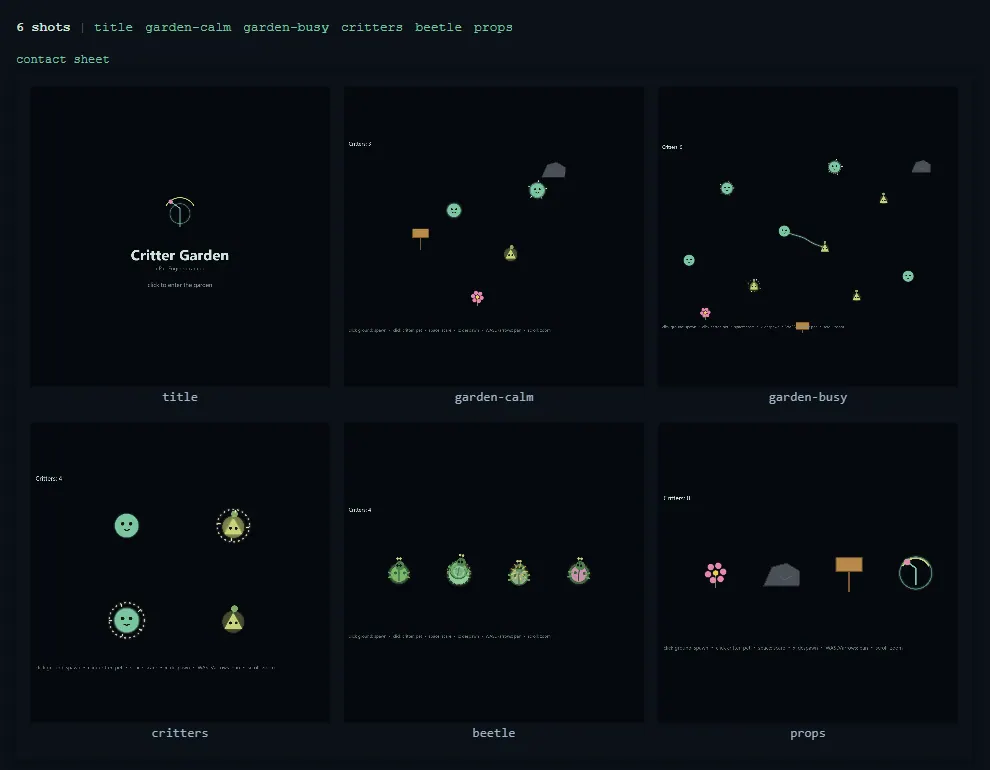

The shot harness: data/shots.json declares named game states and /shots renders them to real canvas images, so an agent can edit art or scene code, reload, and check the actual pixels (programmatically via window.__shots, or as a contact sheet of every state).

Built with Pat_Engine

Sub Game	Mark Likey

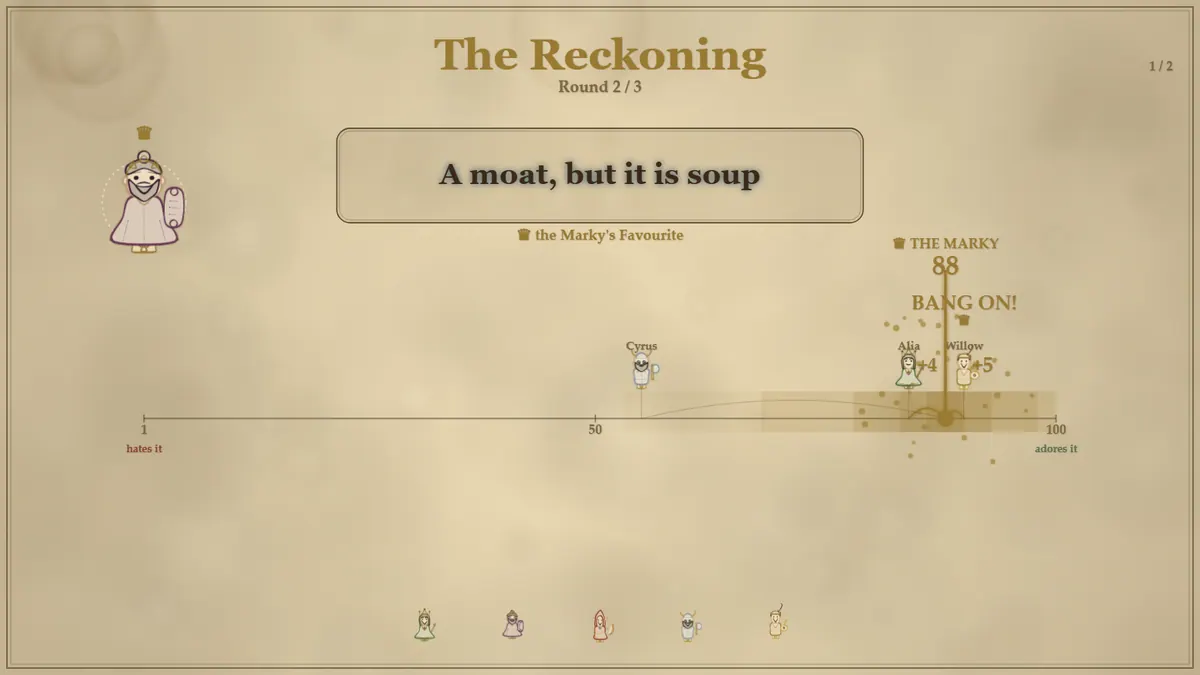

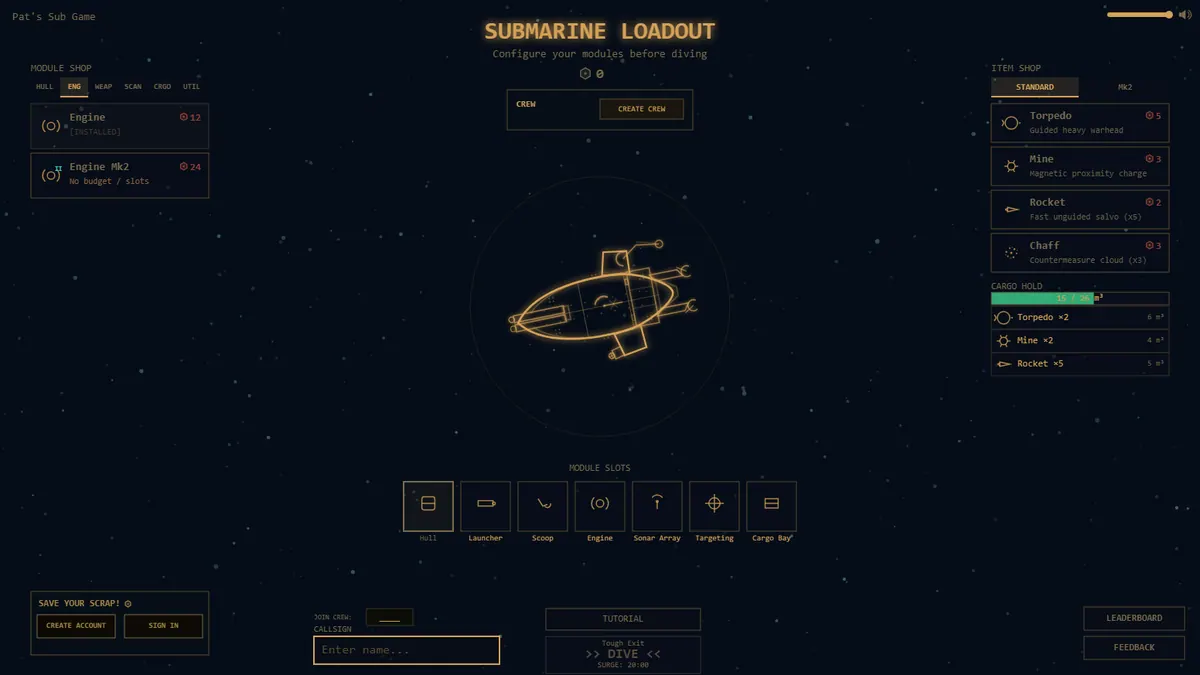

A multiplayer PVPVE extraction game: outfit a modular submarine, dive for salvage among NPC drones and rival crews, and get out before the surge. Crew mechanics let friends run one boat together.	A fantasy-themed Jackbox-style party game about knowing how well you can read your friends' likes: build a courtier, then guess how much the Marky adores each answer.

What's in the box

Vector art: Canvas2D art interpreter + editor (shapes, per-state overrides, keyframe animation).
VFX: effects interpreter + editor (phased effects, particle clouds, trails, beams).
Sequences: a runner + timeline editor that orchestrates sound, VFX, and game-state changes together from a single JSON definition.
Sound: Web-Audio synth/sample engine + soundboard editor.
Music: adaptive-music director (synchronized synth tracks crossfaded by intensity tier) + mixing-console editor with a live piano-roll MIDI editor and ABC/MIDI import.
Core: game loop, scenes, camera (pan/zoom), parallax background, sprite/text caches, ship physics + collision.

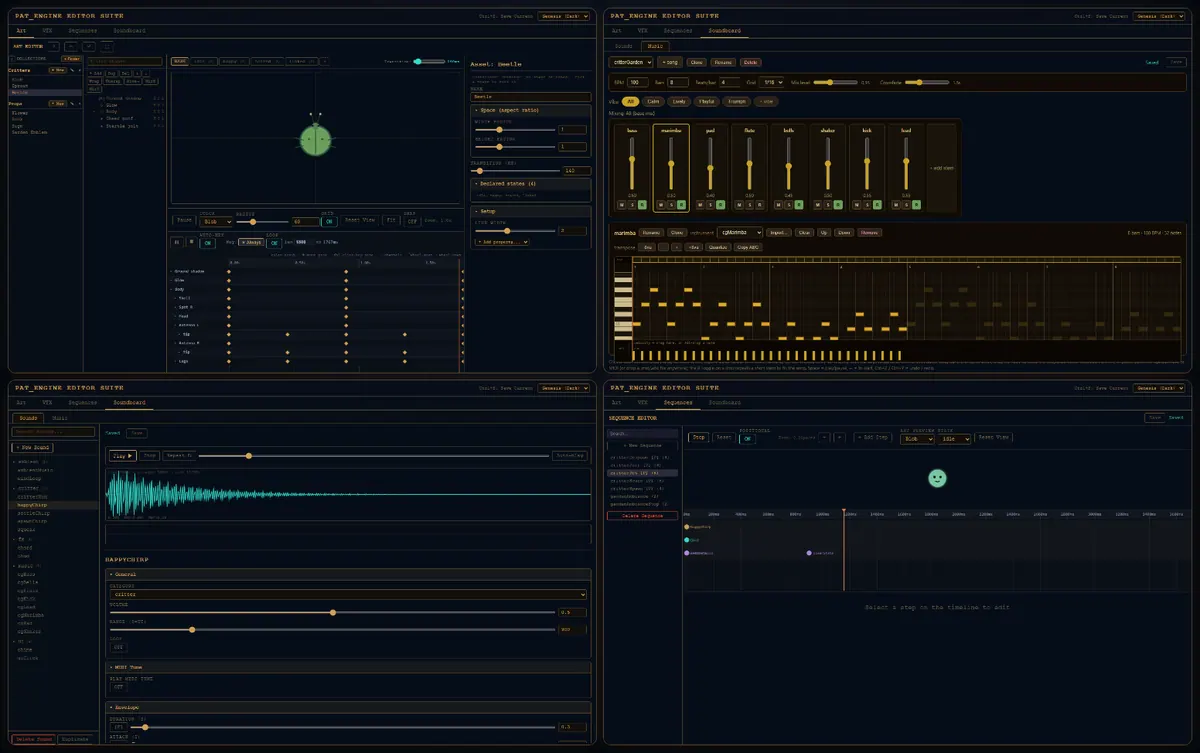

Editor suite: all of the above in one tabbed browser app with a file-based save/backup pipeline. See the Editor Guide.
Critter Garden: a tiny example game that exercises every subsystem except the optional net module. Its only binary assets are two small .wav samples and one .mid score:

Networking (optional)

engine/net/ is a client-server scaffold for multiplayer games, unused by the example. It covers two shapes: authoritative real-time (a fixed-timestep ServerLoop on Node, snapshot interpolation via StateBuffer, and a reconnecting NetworkClient in the browser) and room/party games (RoomServer: short-code rooms, reconnect tokens, host role, heartbeat, with your game logic injected per room). Message types are defined in your game via defineMessageTypes; the single-player core has zero dependency on the module. Wiring sketches for both shapes: engine/net/README.md.

Configuration (env vars)

PORT: HTTP port (default 6970).
HOST: bind address (default 127.0.0.1, loopback only). Set HOST=0.0.0.0 to expose on the LAN.
EDITOR_PASSWORD: when set, the /editor suite and the editor write APIs require login. Unset by default (open), which is safe because the server binds localhost only unless you change HOST.

The save API only writes allowlisted data files and keeps rotated backups under data/.backups/ (details in the Editor Guide).

Layout

engine/   game-agnostic runtime (render, audio, fx, physics, core loop, optional net). No game code in here, ever.
editors/  game-agnostic editor suite, driven by data/editor-manifest.json.
data/     project content: art/vfx/sfx/music/sequence JSON + the manifest. Edited by the editors.
game/     the game: scenes, entities, bootstrap. The only place you write gameplay code.
server/   the host: static serving + editor save API.
assets/   binary assets (SFX samples + MIDI scores).
docs/     the editor guide + screenshots.

The one hard rule: the engine never knows what game it runs. engine/ and editors/ contain no game nouns; games talk to the engine through data and injected services.

Documentation

Doc	What it covers
docs/EDITORS.md	User guide to every editor tool, with screenshots
ENGINE.md	Terse architecture + API cheat-sheet for the runtime
AGENTS.md	The full guide to building a game on this engine. Written for AI coding agents, useful to anyone.
engine/net/README.md	The optional multiplayer module + wiring sketches

License

MIT
